CNH Telematics

The CNH Telemetry interface provides geographical and parametric information on equipment, which are extracted from the Geo Spatial System (GSS) of CNHi. You can use this information before or while creating the work orders in IntelliDealer.

CNH serial numbers are used to search for equipment units. If there is matching serial number data for the queried equipment unit, telematics information is displayed.

Prerequisites: You must set up the configuration. See CNH Data Exchange Platform: Configuration.

Topics in this section are:

Where to access CNH Telematics

From the Equipment Profile sub-menu:

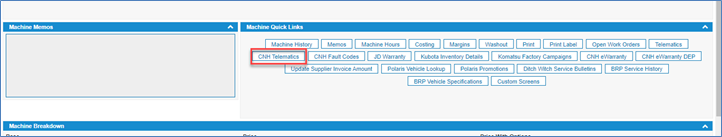

From the Machine Quick Links on the Equipment Profile:

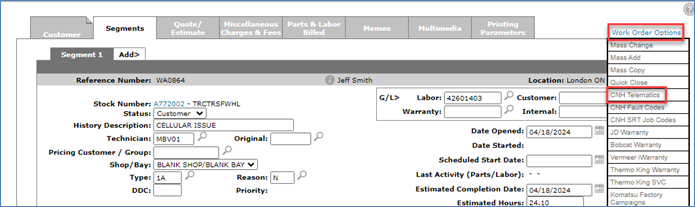

From Product Support > Service > Work Orders >> Segments tab under Work Order Options:

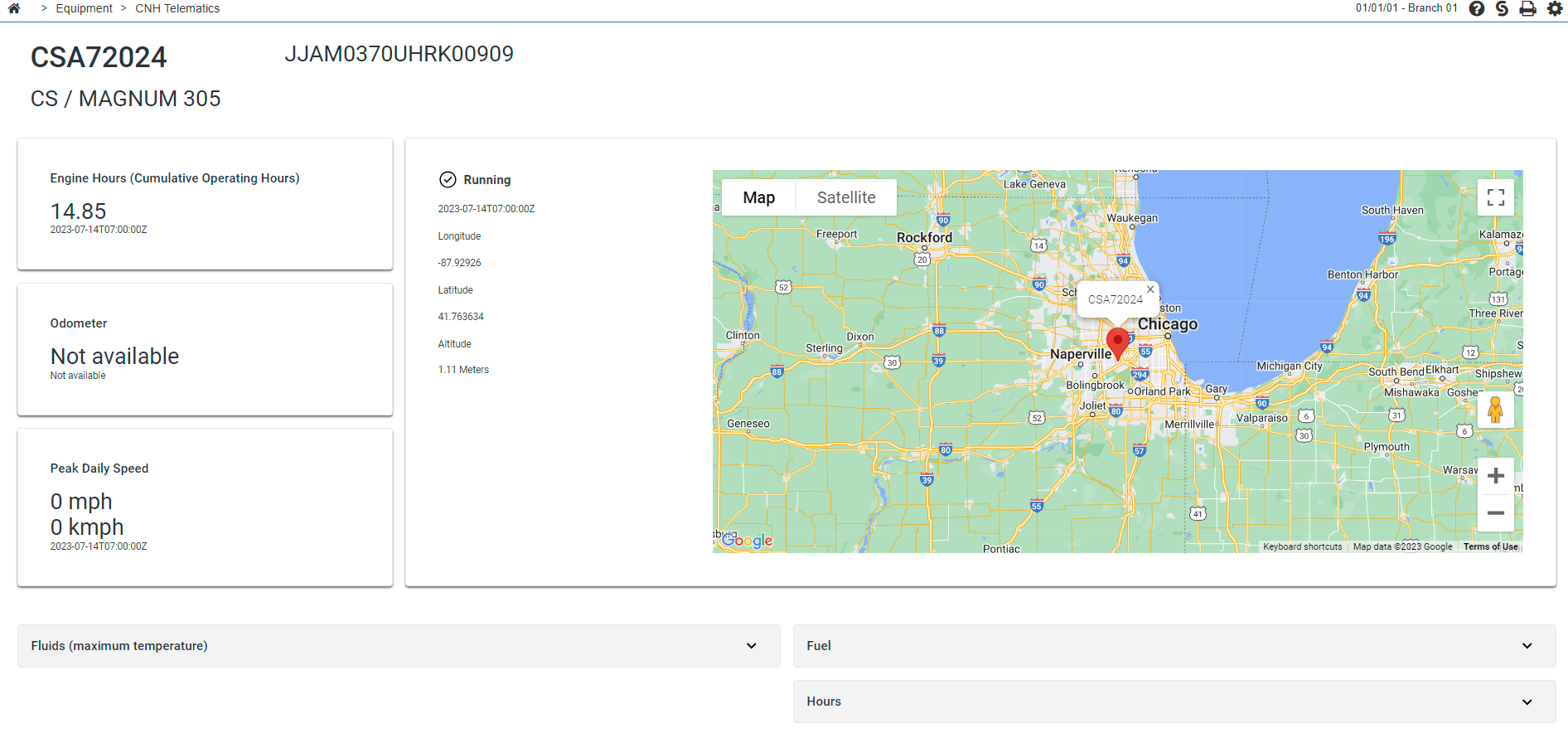

Screen Description

Telemetrics data is grouped and shown on a separate panel, which includes equipment location, odometer, speed, various fluid temperatures, fuel data, and cumulative hours.

Details about each Data card:

  • Engine Hours—The current total lifetime operating hours of the machine expressed as the cumulative quantity of the time during which the machine's engine has been running.

  • Odometer—When available on a machine, the distance traveled by the machine. Odometer card is replaced by Caution Codes.

  • Caution Codes—The parameter indicates the any recent cautions available from the CNH machine.

  • Peak Daily Speed—The indicates the speed of the vehicle on a particular date and time.

  • Engine Status—Shown in the location area, this indicates whether the engine is running.

  • Location—GPS data from position point shown on a map.

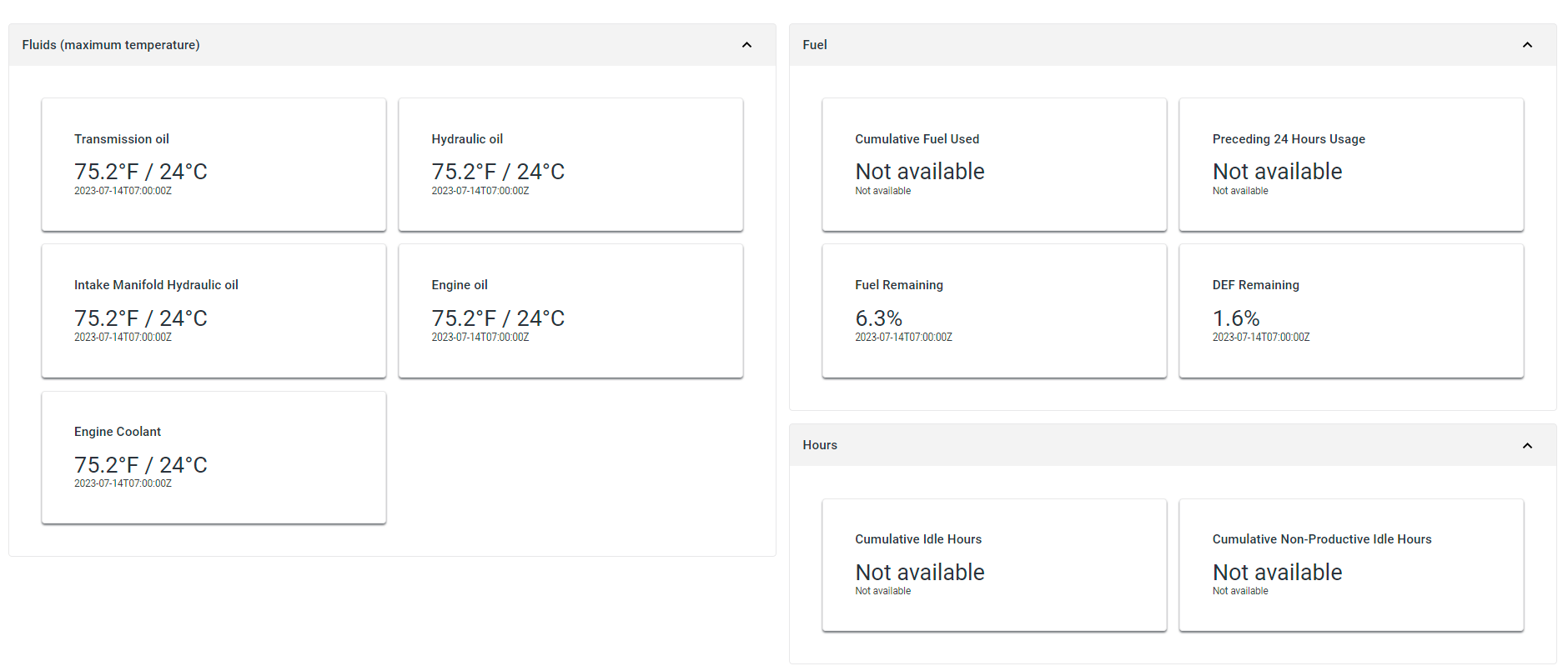

  • Fluids—Temperature values are shown in both °C and °F.

    • Transmission Oil—The latest maximum transmission oil temperature at the date and time.

    • Intake Manifold Hydraulic Oil—The latest maximum intake manifold hydraulic oil temperature at the date and time.

    • Engine Coolant—The latest maximum engine coolant temperature at the date and time.

    • Hydraulic Oil—The latest maximum hydraulic oil temperature at the date and time.

    • Engine Oil—The latest maximum engine oil temperature at the date and time.

  • Fuel

    • Cumulative Fuel Used—The total fuel consumption till the dateTime, expressed in liters and gallons.

    • Preceding 24 Hours Usage—Fuel consumed by the equipment in the previous 24 hours.

    • Fuel Remaining—The percentage of fuel remaining.

    • DEF Remaining—The percentage of diesel exhaust fluid (DEF) remaining at a particular date and time.

  • Hours

    • Cumulative Idle Hours—The total number of hours that the machine's engine has been running while idle.

    • Cumulative Non-Productive Idle Hours—The cumulative non-productive hours.

Feature Number: 6249 - CNH Data Exchange Platform

Security: 800 - Equipment Profile

Revision: 2025.01
