Telematics Map
Use the Telematics Map to view units with AEMP Telematics data on a large map.
To access the Telematics Dashboard, you must have security for System 800 Equipment Profile - Access GPS and integration with at least one AEMP fleet. The Telematics Dashboard does not work with Komatsu Komtrax.
The Telematics Dashboard can be found under Product Support > Equipment > Telematics.

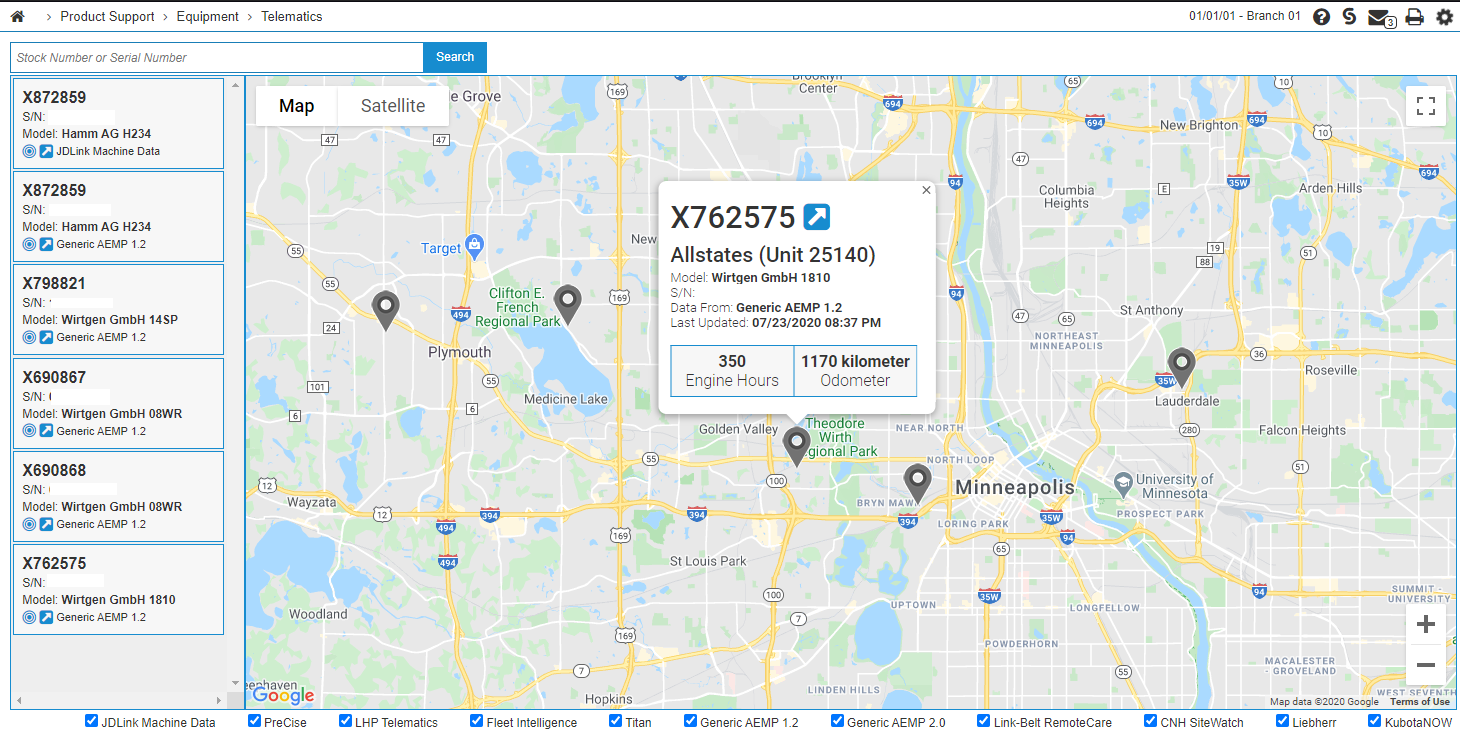

The Telematics Dashboard screen.
Units are shown on the map according to their last location when the AEMP fleet they are associated with was last updated. Click the marker to view some basic details, or use the arrow icon
to launch the Telematics Details pop up.
The left side of the screen lists the units visible on the map. Click the bulls-eye icon
next to a unit to automatically zoom in on it, or click the arrow icon to launch the Telematics Details pop up for that unit.
Below the map, a list of all available AEMP Telematics integrations is shown. If you do not have the feature licensed for a specific telematics integration, it will not be visible. Click a the checkbox to show or hide the specific integration. All integrations available are shown by default. The marker colors on the map correspond to the AEMP Telematics integrations shown in the checkboxes.
Note: While some Komtrax data is populated on the Telematics screen, the Komtrax interface does not make full use of all the fields present on the IntelliDealer screen. For Komtrax-specific data, use the dedicated screen for Komtrax .
Security: 800 - Equipment Profile, Access GPS
Revision: 2025.06
